MK-012-01
Single Microphone |
 |
|
 |
 |
 |
MK-012-01
Silver |
The MK-012-01 is a compact, high quality capacitor microphone. The wide, flat response ensures that all sounds are captured with a high degree of accuracy. A -10 dB pad is included for use in high SPL environments. |
 |
The MK-012-01 is suitable for use in any situation where an accurate sound is required, the size of the system makes it ideal for use in broadcast, sound for picture, installation, sound reinforcement and theatre situations as well as the recording studio. |
MK-012-01
Black
|
| |
Fequency Response & Technical Specifications
|
 |
| Mic type |
Small
diaphragm condenser |
| Polar Pattern |
Cardioid |
| Freq. Response |
20-20000Hz |
| Phantom voltage required |
48 +\- 2V |
| Full impedance, module |
less than 300
ohms |
| Weighted SPL (ref. DIN 45412) |
18 dBA |
| Maximum SPL in 250-8000Hz range, (less than
0.5% THD) |
130 db |
| Free field sensitivity at 1KHz |
10 mV/Pa |
| Free field sensitivity roll off from 40Hz
to 20KHz |
should not exceed
+\- 3 db |
| Weight |
70 gr |
| Length, mm |
128 |
| Max diameter/width, mm |
23 |
| Accessories included |
Mic holder |

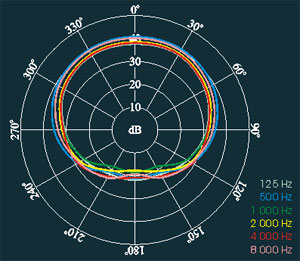

The
difference in free field sensitivity between 0° and 90°
should be as follows: |
For cardioid capsule:
|
|
| in 250-8000 Hz range: |
no less than
4 db |
| Average sensitivity difference between O°
and 180° for cardioid capsule in 63-12500 Hz range: |
16 db |
|
Cardioid  |
|
|
