MK-012 Single Microphone

Where To Buy

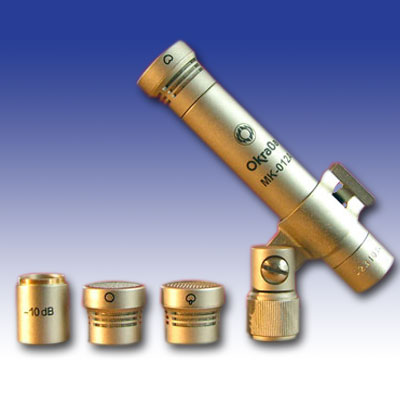

MK-012 Silver

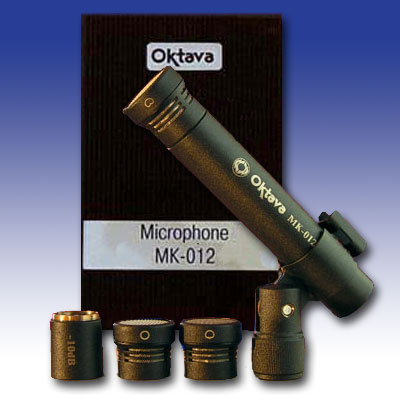

The MK-012 is a compact, high quality capacitor microphone. The wide, flat response ensures that all sounds are captured with a high degree of accuracy. A cardioid, omni & hypercardioid capsule increase this microphone's versatility. The MK-012 is suitable for use in any situation where an accurate sound is required, the size of the system makes it ideal for use in broadcast, sound for picture, installation, sound reinforcement and theatre situations as well as the recording studio. MK-012 Black


Fequency Response & Technical Specifications

cardioidCardioid
Mic type Small diaphragm condenser
Polar Pattern Cardioid, Onmi, Hypercardioid
Freq. Response 20-20000Hz
Phantom voltage required 48 +\- 2V
Full impedance, module less than 300 ohms
Weighted SPL (ref. DIN 45412) 18 dBA
Maximum SPL in 250-8000Hz range, (less than 0.5% THD) 130 db
Free field sensitivity at 1KHz 10 mV/Pa
Free field sensitivity roll off from 40Hz to 20KHz should not exceed +\- 3 db
Weight 70 gr
Length, mm 128
Max diameter/width, mm 23
Accessories included Mic holder
The difference in free field sensitivity between 0° and 90° should be as follows:
For cardioid capsule:

in 250-8000 Hz range: no less than 4 db
Average sensitivity difference between O° and 180° for cardioid capsule in 63-12500 Hz range: 16 db
Omni
Hypercardioid
