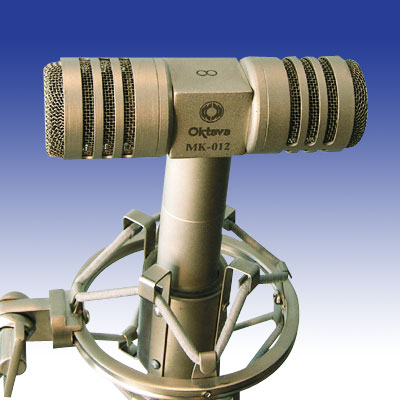

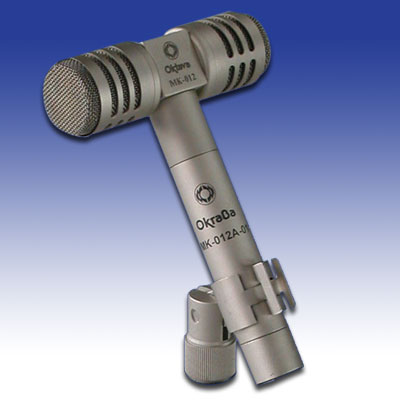

MK-012 Figure-8 Adapter

Figure-8 capsule adapter can be used with Oktava's MK-012 interchangable capsules (not included).
(shockmounts are not included)

Fequency Response & Technical Specifications

Mic type	Small diaphragm condenser
Polar Pattern	Figure-of-eight
Freq. Response	20-20000Hz
Phantom voltage required	48 +\- 2V
Full impedance, module	200 ohms
Weighted SPL (ref. DIN 45412)	18 dBA
Maximum SPL in 250-8000Hz range, (less than 0.5% THD)	120 db
Free field sensitivity at 1KHz	> 8 mV/Pa
Recommended load impedance	>1000 ohms
