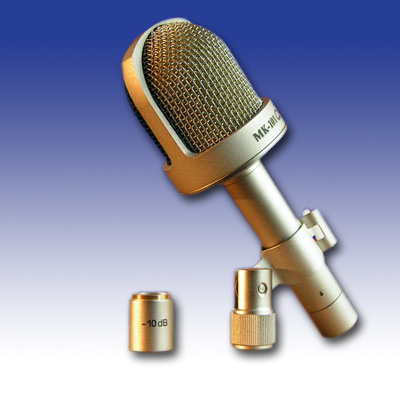

MK-101 Microphones |
 |
|
 |
 |
 |
The MK-101 is a compact, high quality capacitor microphone. The wide, flat response ensures that all sounds are captured with a high degree of accuracy. A cardioid, omni & hypercardioid capsule increase this microphone's versatility. |
 |
 |
 |
The MK-101 is suitable for use in any situation where an accurate sound is required, the size of the system makes it ideal for use in broadcast, sound for picture, installation, sound reinforcement and theatre situations as well as the recording studio. |
| |

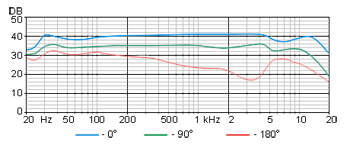

Fequency Response & Technical Specifications
|
 |
| Freq. Response, |
Hz 20-20000 |
| Output sensitivity, mV/Pa |
16 |
| Max SPL, dB for 0, 5% THD |
122 |
| Self Noise (DIN), dBa |
<18 |
| Output impedance, ohm |
150 |
| Phase |
Positive |
| Powering, V |
48 |
| Switches |
-10dB Pad |
| Weight, g |
215 |
| Length, mm |
165 |
| Max diameter/width, mm |
55 |
|
| |
| |
|
|
