MK-105 Microphones |
 |
|
 |
|
 |
The MK-105 uses the MKL-5000 capsule but has another head and body construction. Designed to work with numerous sound sources to maximum effect, the MK-105 excels on vocals, grand pianos, guitars and percussion amongst many other sources, and gives presence and warmth to lead parts in the mix.
|
 |
 |
 |
The frequency response of the MK-105 is expansive, ranging from 20 Hz to 20 kHz and smooth throughout all of its polar patterns. Despite its sensitivity it has a very high SPL handling capability and very low noise floor, allowing straight to digital recording and thus leaving the pure warm sound unadulterated. |
| |

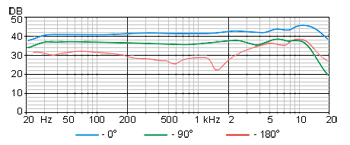

Fequency Response & Technical Specifications
|
 |
| Freq. Response, Hz |
20-20000 |
| Output sensitivity, mV/Pa |
10-16 |
| Max SPL, dB for 0,5% THD |
120 |
| Self Noise (DIN), dBa |
<=18 |
| Output impedance, ohm |
200 |
| Powering, V |
48 |
The difference in free field sensitivity
between
0° and 90°, db |
>= 4 |
The difference in free field sensitivity
between
0° and 180°, db |
<=18 |
| Weight, g |
|
| Length, mm |
160 |
| Max diameter/width, mm |
55 |
|
| |
| |
|
|
