MK-219 Large Diaphragm Microphones |
 |
|
 |
|
 |

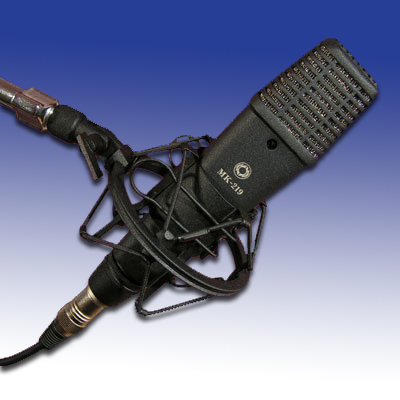

The hugely popular MK 219 is a fixed pattern, cardioid
microphone featuring a large diaphragm capsule teamed with a low
noise discreet preamplifier circuit. Magnetic reed switches are
provided for reliable long term durability of both the 10dB pad
and the high pass filter.
|
 |
 |
 |
The capsule employs an extremely thin, gold plated diaphragm. When used for vocals, the large diaphragm capsule adds warmth
and enhanceshigh frequency detail while still sounding completely
natural. The Oktava MK219s high sensitivity means that it can be used

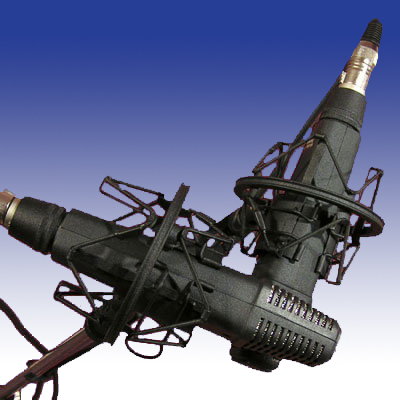

on acoustic guitars, pianos and in factory matched stereo pairs for ensemble recordings. |
| |

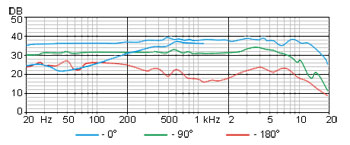

Fequency Response & Technical Specifications
|
 |
| Mic type |
Large diaphragm condenser |
| Freq. Response, Hz |
40-16000 |
| Output sensitivity, mV/Pa |
11 |
| Max SPL, dB for 0, 5% THD |
122 |
| Self Noise (DIN), dBa |
<14 |
| Output impedance, ohm |
200 |
| Phase |
Positive |
| Powering, V |
48 |
| Supply current, mA |
8 |
| Switches |
-10dB / High-Pass Filter |
| Weight, g |
510 |
| Length, mm |
202 |
| Max diameter/width, mm |
48 |
| Temp. Range |
-35degrees C to +45 degrees C |
| Relative Humidity |
85% (+25 degrees C) |
| Accessories included |
Mic holder |
|
| |
| |
|
|
