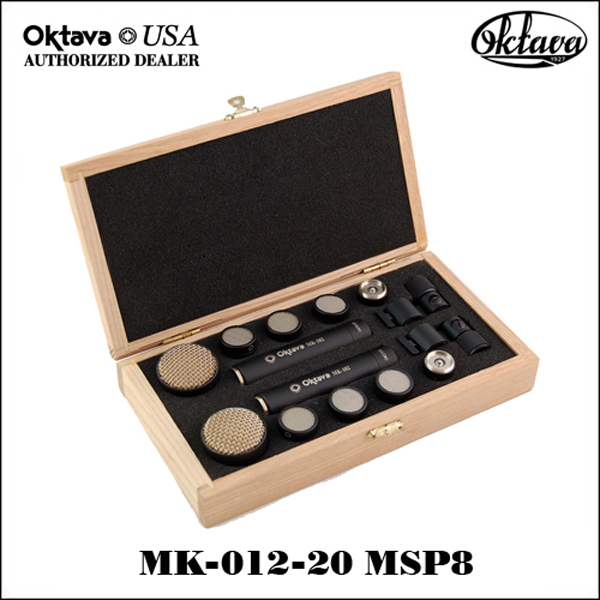

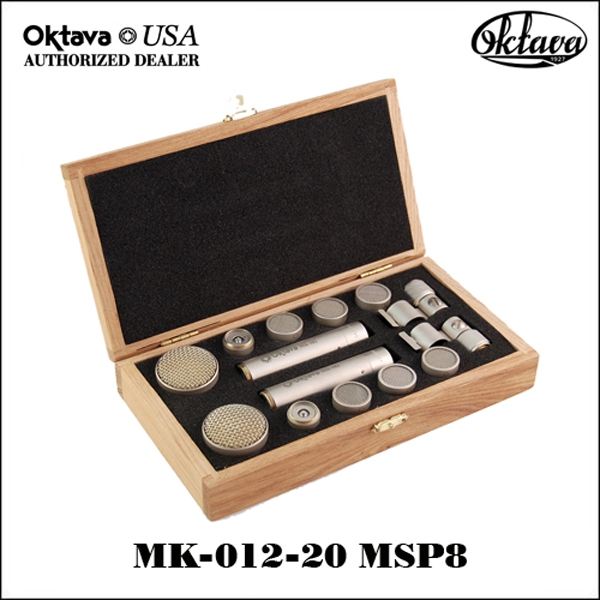

MK-012-20 Factory Matched Stereo Multi-Cap Microphone Kit

Includes wood storage case, cardioid, omni, hyper, and MK-102 capsules, -10dB pads, mic clips.

$1,500.00

Clear

Includes wood storage case, cardioid, omni, hyper, and MK-102 capsules, -10dB pads, mic clips.

Additional information

Weight 5 lbs
Additional Information

Technical Specifications

Mic type Small diaphragm condenser
Polar Pattern Cardioid, Hypercardioid, Omnidirectional
Freq. Response 20-20000Hz
Phantom voltage required 48 +- 2V
Full impedance, module less than 300 ohms
Weighted SPL (ref. DIN 45412) 18 dBA
Maximum SPL in 250-8000Hz range, (less than 0.5% THD) 130 db
Free field sensitivity at 1KHz 10 mV/Pa
Free field sensitivity roll off from 40Hz to 20KHz should not exceed +- 3 db
Weight 70 gr
Length, mm 128
Max diameter/width, mm 23
Accessories included Mic holder
Accessories optional Shockmount
The difference in free field sensitivity between 0° and 90°
should be as follows:
For omnidirectional capsule:
in 40-1000 Hz range: no more than 2 db
in 1-5 KHz range: no more than 4 db
in 5-8 KHz range: no more than 8 db
For cardioid capsule:

in 250-8000 Hz range: no less than 4 db
For hypercardioid capsule:

in 250-5000 Hz range: no less than 8 db
Average sensitivity difference between O° and 180° for cardioid capsule in 63-12500 Hz range: 16 db
